Heavy-duty floor mounted pull-out units | Loading from the forklift corridor

Choose product variant:

SKU
la_6511
from €749.00 /Piece
Excl. 19% VAT, excl. Shipping Cost
Packing Unit 1 Piece Delivery Time about 4-5 weeks Freight shipping
Technical Data
More Information
Load capacity 1.500 kg
Pull-out direction Longitudinal extension (standard)
Size (WxH) 800 x 1200 mm | Storage surface
Pull-out approx. 85%
Loading rear-loading
Anti-slip-stripes inclusive
Fitting kit inclusive
Downloads
Product advantages
  • For extremely heavy loads up to 1,500 kg
  • Able to pull goods up to 85 % off racks
  • Optimal use of storage space
  • For picking up pallets and mesh pallets
  • NEW: Product video for floor mounted pull-out units
Related Products

Floor mounted heavy-duty pull-out units - up to 1.500 kgs capacity load!

Heavy-duty floor mounted pull-out  units | Loading from the forklift corridor

LOADING FROM THE FORKLIFT AISLE
REMOVAL FROM PICKING AISLE

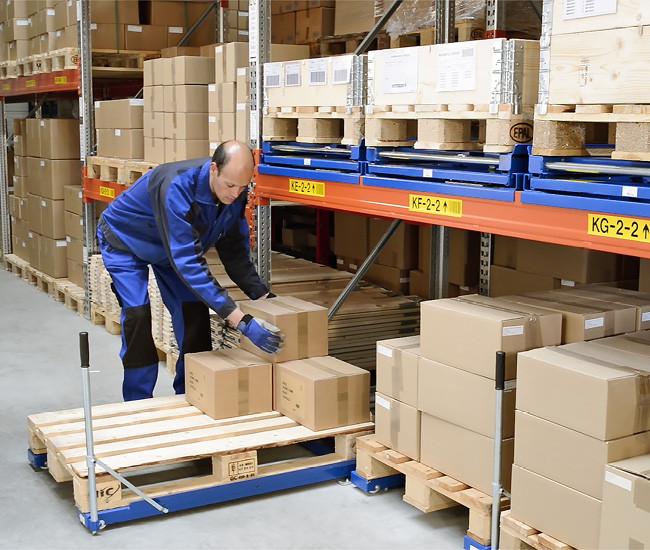

Quite often the shelves are loaded from the front, the picking aisle. Our floor mounted pull-out units are designed for this type of loading as standard. However, we also offer our heavy-duty floor pull-outs for customers where loading is carried out from the forklift aisle, i.e. the back of the shelves. Loading and removal are then carried out from different sides.

Heavy-duty floor mounted pull-out  units | Loading from the forklift corridor

A "U" BECOMES AN "E":
CENTRAL STRUT PROVIDES STABILITY




The heavy-duty floor pull-outs are designed for loading with high loads of up to 1,500 kg. Therefore we equip these floor pull-outs with an additional middle leg, so that these pull-outs have an "E" shape. With this additional middle strut, the load is now distributed more evenly on 3 heavy-duty castors in the feet, compared to floor pull-outs which have only 2 struts.

Heavy-duty floor mounted pull-out  units | Loading from the forklift corridor



EDGES ON THREE SIDES
FOR CENTERING

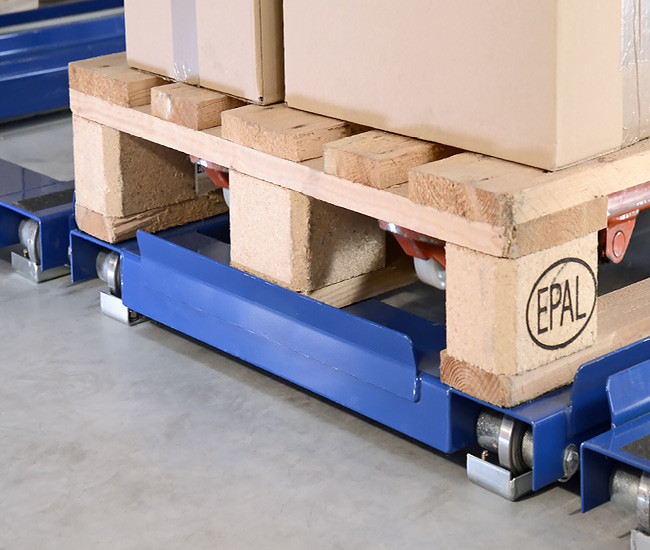

All our floor pull-outs are equipped with lateral stop edges and a rear stop edge. These edges help to ensure that the pallets (or mesh boxes) are centred on the pull-outs and do not protrude to the sides or back.

Heavy-duty floor mounted pull-out  units | Loading from the forklift corridor

DIFFERENT UNLOCKING OPTIONS &
85% PULL-OUT DEPTH

When retracted, the floor mounted pull-out units are always locked automatically. Before the pull-outs are pulled out, they must be unlocked. With the standard handle, the unlocking is done by a lever integrated in the handle, with the Easy-Action handle the unlocking is done automatically when the handle is pulled. In the variant with foot lock, the lock is released by a foot lever and the unit is pulled out on the load carrier, e.g. a mesh box.

The pull-outs can then be pulled out of the shelf by 85% and thus the goods are easily and quickly accessible at any time in the rear shelf area.
