Storage technology

Beam mounted pull out units

The pallet pull-out units are placed on the cross beams of a pallet rack and connected to the rack with the help of a fastening set. Depending on the model type, loads between 200 and 1.500 kg are available with extension depths of 70 or 100 %. The pallet pull-out facilitates ergonomic handling during order picking, assembly and production and has proven itself in tens of thousands of applications in a wide range of industries and sectors.

Floor mounted pull out units

Our floor mounted pull out units are available with load capacities from 800 to 1.500 kgs and it can be pulled out by approx. 85 %. The pull-out unit is equipped with 4 fixed castors, with the rear castors running on two rails. The rails must be fixed in the hall floor and serve to ensure the safe straight running of the pallet pull-out device. When closed, the floor mounted pull-out nunits are locked by means of a pull handle, which is available in different lengths. An optional Easy-Action handle is available to make it easier to pull heavy loads straight out.

Compact pull out racks

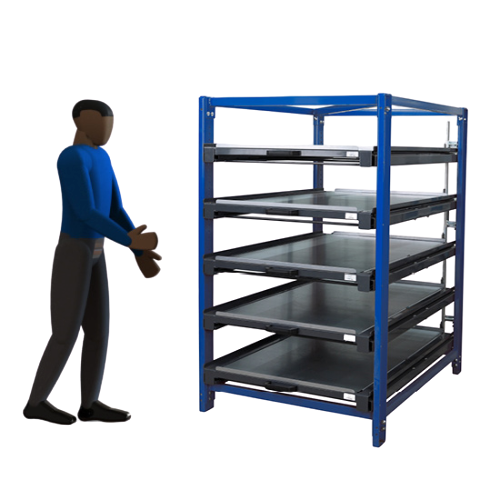

Compact pull-out rack with 70% or 100% extension shelves and a storage surface of 800 x 1200 mm as an ideal supply solution for small parts, KLTs and more. Due to its small dimensions, the compact pull-out rack can be transported by hand pallet truck and can therefore be used at different places within the company.

E-Mobility

Our electrically  pull-out units for cross beams of a pallet rack facilitate the ergonomic handling of very high loads during order picking, assembly and production.

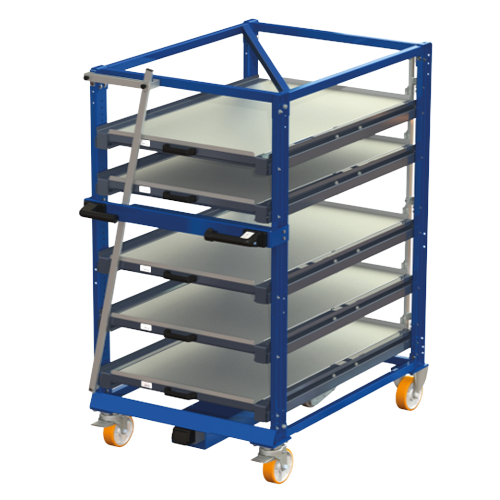

The electrically movable compact pull-out racks with 70 % or 100 % extension shelves and a load capacity of 150 kg or 200 kg are the ideal mobile supply solution for small parts, KLTs and more.



KROG - Your expert for extraction units!

Pallet pull-out units as practical helpers in the warehouse

The goods stored in the rear part of a heavy-duty rack can normally only be removed with the aid of tools such as an ant or a forklift truck, even if only a small box or a small workpiece is required. With the aid of pallet pull-out units, the stored goods can be removed from the rack together with the pallet, easily and without the aid of a forklift. This offers a multitude of advantages: Time savings (because the pull-out unit is firmly integrated in the pallet rack), cost savings (because forklifts are not needed for such tasks), space savings (because storage space is better utilized) and also a significant ergonomic relief for the employees when removing the goods, because the back is relieved. The pallet pull-out is placed on the crossbar of a pallet rack and connected to the rack with the help of a fastening set. Depending on the model type, loads between 200kg and 1,000kg are available, with pull-out depths of 70% or 100%.
