| Pull-out approx. | 70 % |
|---|---|
| Material | galvanized steel |
| Pull-out direction | Longitudinal extension |
| Other | available for cross pull-out units on request |

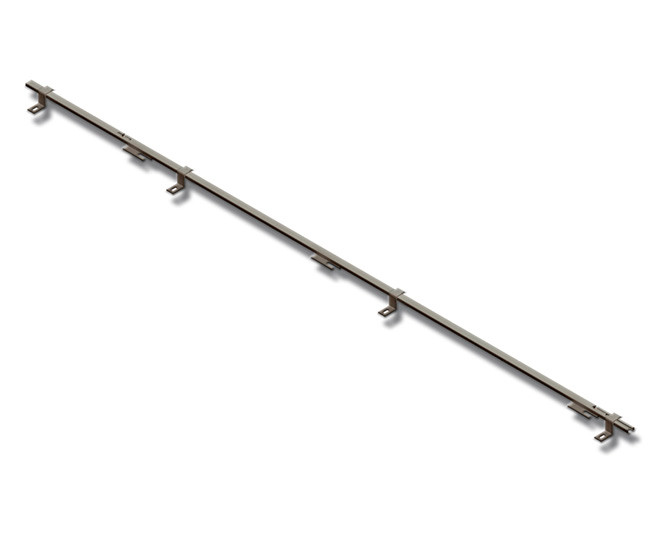

Our KROG safety locking system prevents several pallet pull-out units next to each other from being pulled out at the same time. For safety reasons, only one drawer may be pulled out at a time on a pair of uprights, otherwise the stability of the pallet rack cannot be guaranteed. To ensure this, we offer our safety locking system, which stop the other pull-out untis as soon as one pull-out unit is extended.

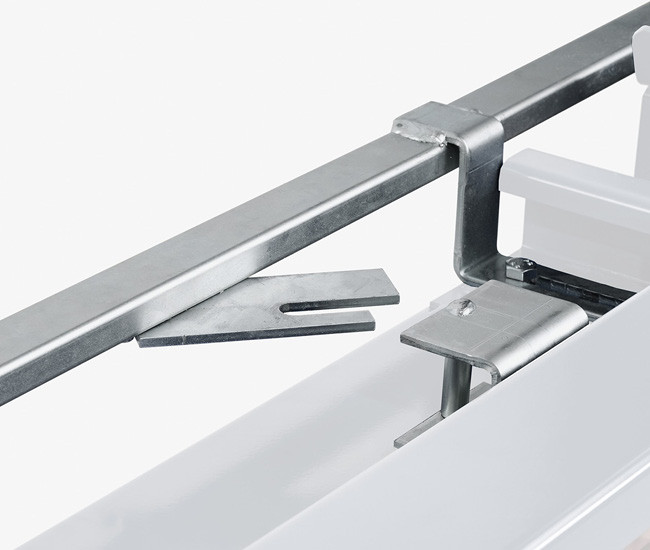

We offer 2 different versions of our safety lock: One for installation behind the pull-out units and an alternative for installation under the pull-out units. We offer the locking system for installation behind the pull-out units both for our pull-out units with 70 % pull-out depth and for our pull-out units with 100 % pull-out depth. Additional space is required behind the pull-out units for the locking mechanism. Therefore, it must be ensured that enough space is available for the installation.

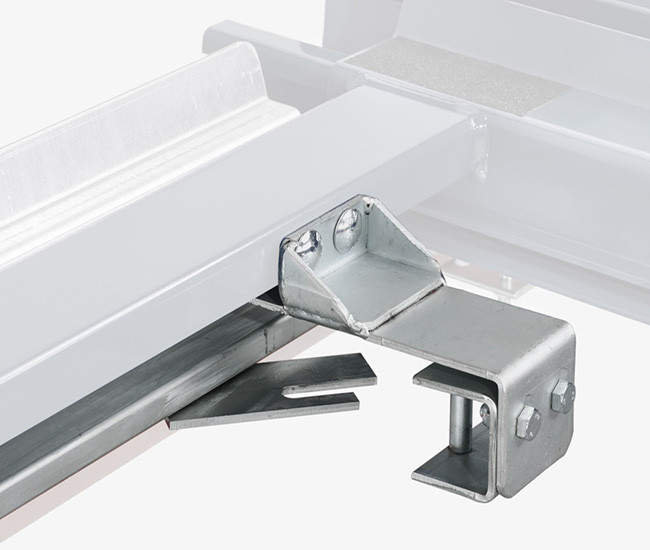

The locking system for mounting under the pull-out units can only be offered for our pull-out untis with a pull-out depth of 70 %. The safety locking is mounted in front of the rear crossbar of the pallet rack, so that the locking bar is well protected from damage. We offer the locking systems devices for 2 or 3 pull-out untis mounted side by side, on request also for 4 pull-out untis mounted side by side.
Our shelf & aisle signs are manufactured and printed exclusively for you. For consecutive lettering, you can enter the desired details in the field Print above.
Example 1:
You would like to order 27 signs with the inscriptions A1 to A9, B1 to B9 and C1 to C9. In this case, enter quantity 27 and enter “A1-A9,B1-B9,C1-C9” in the Print field.
Example 2:
You would like to order 10 signs with the lettering A to E and K to O. In this case, enter quantity 10 and enter “A-E,K-O” in the print field.
For larger quantities, additional characters or special colors, please send us an Excel spreadsheet to info@krog.de. In order to be able to clearly assign your e-mail, please state the order number or reply directly to our order confirmation.
If you note “see Excel” in the Print field, we know that you are sending labeling instructions separately.
