Table frame IDC 150 flex | Electric

Amount	Single Price	Savings
3	€783.00 each Piece	5%
5	€740.00 each Piece	10%

SKU

318150

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical Data

More Information
Dimensions table top	1.200 - 2.000 x 800 x 24 mm
Load capacity	190 kg
Height adjustment	675 - 1.125 mm
Height adjustment by	Electric motors

Product advantages

Electrically height-adjustable
Quick & easy assembly
Max. Load: 150 kg
Height adjustable: 675 - 1,125 mm

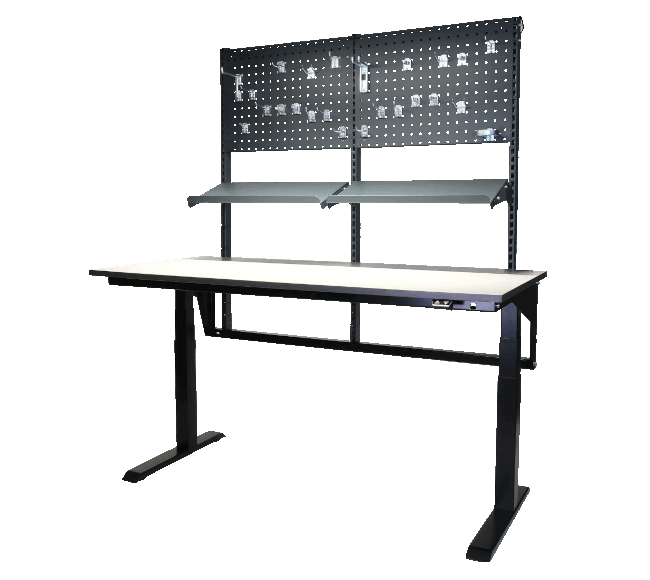

IDC 150 Flex - electrically height-adjustable work table frame

ELECTRICALLY HEIGHT-ADJUSTABLE

Thanks to its electric height adjustment, the IDC 150 Flex table frame is ideal for light assembly and order picking work. Infinitely variable height adjustment is carried out using a switch, which can be mounted either on the left or right. The lifting speed is 29 mm/s when unloaded. Integrated collision protection provides additional safety when lifting and lowering. The adjustment range is between 600 mm and 1,150 mm. The electric motor requires a 230 V / 50 Hz connection.

DIMENSIONS

The frame is made of sheet steel in black (RAL 9005) and carries a maximum load of 190 kg. The width of the telescopic frame is flexibly adjustable - from 1,100 mm to 1,800 mm - and is suitable for worktops with a depth of 800 mm and a width of 1,200 mm, 1,600 mm or 2,000 mm.

The adjustable table legs ensure a secure stand even on uneven floors. The frame can be assembled quickly and without tools. The product weighs 28.5 kg.

Note: Only the table frame is included in the scope of delivery. The matching table top (800 mm deep) must be ordered separately.

FLEXIBLE APPLICATION OPTIONS

A special feature of the IDC 150 Flex is the generous legroom under the work surface - there is no need for a horizontal support profile.

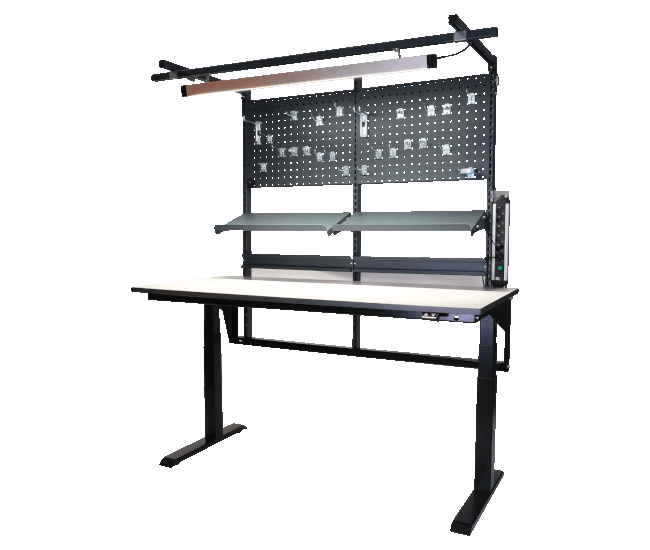

Customize your workstation: With our extensive range of accessories - including shelves, base units, storage boxes, monitor holders and LED lights - you can create maximum flexibility. This means you always have an overview, optimize your efficiency and promote an ergonomic way of working.
