Reference project: Beam mounted pull out units for SAMSON
Were created a total of 284 storage spaces and 160 pieces pull out units mounted. Due to a multi-floor production and administration building were used special load distribution plates for the pallet racks.
Heavy duty pull-out units - up to 1.200 kgs capacity load!
EXTREMLY ROBUST WITHOUT MAINTENANCE COST

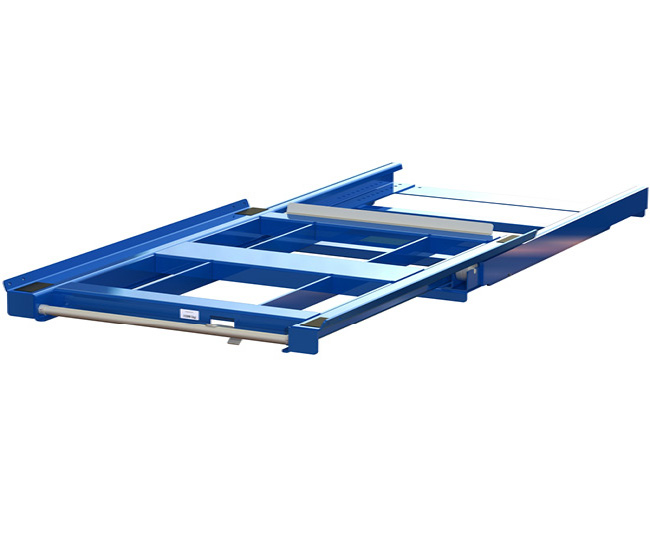

Our extremely stable KROG beam mounted heavy duty pull out units are particularly suitable for extremely heavy loads. The very high loads from 1.000 kg up to 1.200 kg create versatile application possibilities in the field of assembly, production and storage. The extremely robust and solid steel construction guarantees a long service life without maintenance costs! The maintenance-free ball bearings guarantee easy pull out of the pull-outs even with particularly heavy loads.
OPTIMAL EXPLOITATION OF EXISTING RACK SPACE
You can pull the pallets or wire boxes together with the stored goods out of the rack and comfortably serve from the rear area. The storage areas of a pallet rack are thus fully utilised. Ergonomic and three-sided access to the goods is also made possible for employees.
SIMPLE MOUNTING IN RACKS

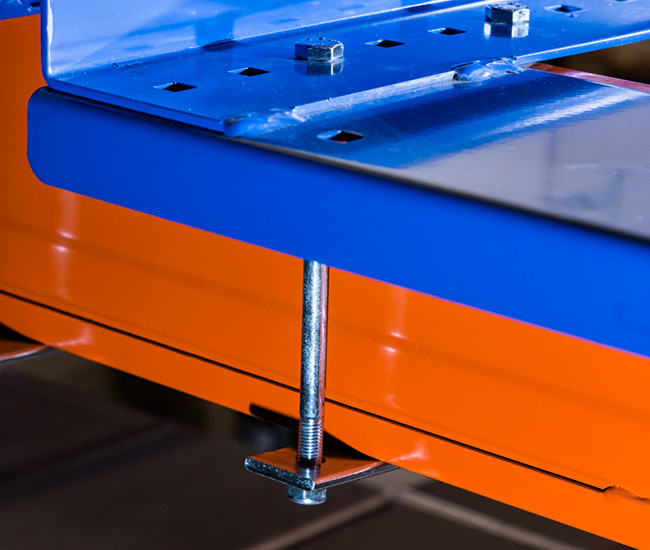

The beam mounted pull-out units can be easily mounted in all common pallet racks. Retrofitting is possible at any time. The pull-out units are placed on the existing traverses and then screwed together. A mounting set and assembly instructions are included. We supply the reinforced screws M10 x 140 for a beam height of up to 160 mm. For higher beams we need a note in the order.
Three pull-out units side by side fit exactly on the 2.70 m traverse of a rack. Our units fit into standard racks with depths from 970 – 1.220 mm. If you have different rack beams, we look forward to your inquiry. Please note that our heavy duty pallet pull-outs have high demands on the pallet rack. A list with the shelf loads can be found in the tab PDF downloads - „Montageanleitung Palettenauszüge“.
HELP WITH CUSTOM LABELING
Our shelf & aisle signs are manufactured and printed exclusively for you. For consecutive lettering, you can enter the desired details in the field Print above.
Example 1:
You would like to order 27 signs with the inscriptions A1 to A9, B1 to B9 and C1 to C9. In this case, enter quantity 27 and enter “A1-A9,B1-B9,C1-C9” in the Print field.
Example 2:
You would like to order 10 signs with the lettering A to E and K to O. In this case, enter quantity 10 and enter “A-E,K-O” in the print field.
For larger quantities, additional characters or special colors, please send us an Excel spreadsheet to info@krog.de. In order to be able to clearly assign your e-mail, please state the order number or reply directly to our order confirmation.
If you note “see Excel” in the Print field, we know that you are sending labeling instructions separately.
