Our KROG pull-out units with steel floor are ideal for storing small parts, KLTs and cardboard boxes in a pallet rack. The continuous steel floor allows direct storage of loose goods as well as smaller components and spare parts with a load capacity of up to 200 kg.

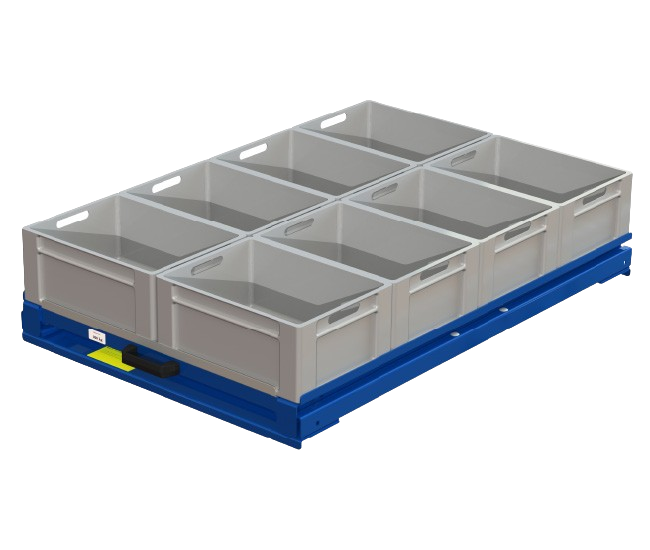

The support surface of 800 x 1.200 mm is optimally matched to the dimensions of the Euro standard containers. For example, 8 containers measuring 300 x 400 mm or 4 containers measuring 400 x 600 mm fit on one pull-out. The all-round edge provides a secure hold for the containers.
OPTIMAL USE OF STORAGE SPACE
With our beam mounted pull-out units, you can also make better use of the rear area of a pallet rack. Storage areas are thus fully utilised and further aids such as forklifts are no longer required for removal and order picking. Depending on the model, you pull the unit up to approx. 70 % or even 100 % out of your racks and can take goods out directly. Alternatively, we also offer a pull-out unit with a two-way action of approx. 70 %. Maintenance-free and smooth-running ball bearings ensure easy pull-out of the units and a long service life without maintenance costs!
EASY INSTALLATION

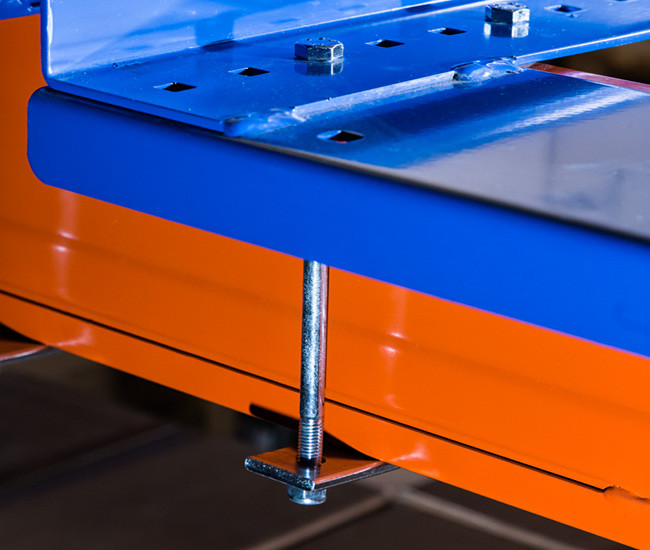

You can install our beam mounted pull-out units quickly and easily in your existing pallet rack. Assembly is possible at any time in all common heavy-duty rack systems. The pull-out units are simply placed on the existing beams of the shelving and then firmly screwed together. Retrofitting is therefore possible at any time. The corresponding fixing set and assembly instructions are included in the scope of delivery!
SECURITY LOCKING FOR YOUR SAFETY
A locking mechanism in the closed position is provided by a ball lock, which can be individually adjusted and prevents the pull-out unit from sliding out unintentionally!

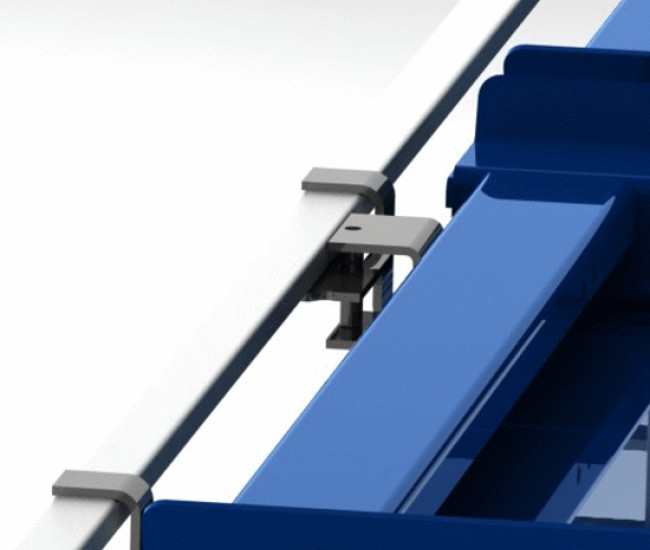

To prevent three pull-out units mounted side by side on a traverse from being pulled out at the same time, they can be connected to each other via an optional safety interlock. This prevents the pulling out of another pull-out unit at the same time.
HELP WITH CUSTOM LABELING
Our shelf & aisle signs are manufactured and printed exclusively for you. For consecutive lettering, you can enter the desired details in the field Print above.
Example 1:
You would like to order 27 signs with the inscriptions A1 to A9, B1 to B9 and C1 to C9. In this case, enter quantity 27 and enter “A1-A9,B1-B9,C1-C9” in the Print field.
Example 2:
You would like to order 10 signs with the lettering A to E and K to O. In this case, enter quantity 10 and enter “A-E,K-O” in the print field.
For larger quantities, additional characters or special colors, please send us an Excel spreadsheet to info@krog.de. In order to be able to clearly assign your e-mail, please state the order number or reply directly to our order confirmation.
If you note “see Excel” in the Print field, we know that you are sending labeling instructions separately.
