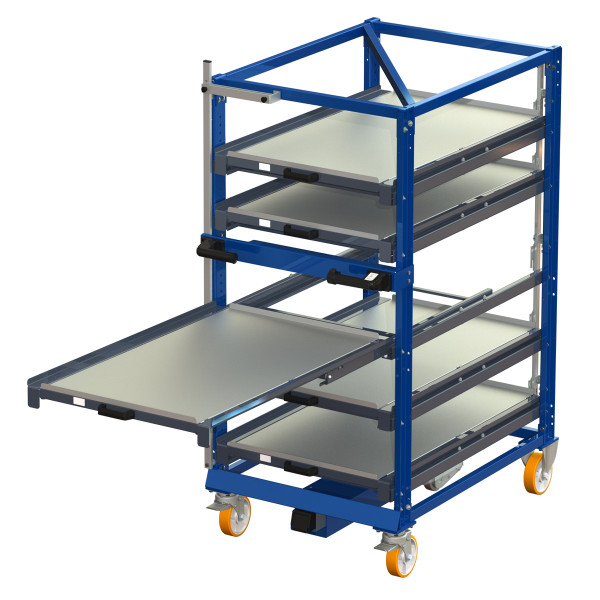

Compact pull out rack - electrical

Choose product variant:

Only %1 left
SKU
la_Kompaktregal_elektrisch



Price on request

This product is customised or configured for you. We will be happy to provide you with a personalised quote. Simply click on the enquiry button on the right. .



We are here for you.

T   +49 40 – 8000 7750

M   anfrage@krog.de Kontaktbild

Technical Data
More Information
Size 800 x 1.200 mm | Shelf
Pull-out approx. 70 %
Colour Gentian blue - RAL 5010
Product advantages
  • Easy to move
  • Durable battery
  • Load capacity 150 kg (100 %) or 200 kg (approx. 70 %)
  • Support surface 1.200 x 800 mm
  • Ideal for containers and small parts

Electrical driven Compact Storage Unit

Compact pull out rack - electrical

EASY TO MOVE
WITH HIGH LOADS

The compact storage units were originally designed for us as a stationary storage facility for small parts. However, it soon became apparent that the rack could also be used for many other purposes. Thus, the range of accessories for the compact racks has been continuously expanded in the past years. Among other things, compact racks on castors were increasingly in demand. However, when compact shelves on castors are frequently moved, the high weight, dead weight and load on the drawers, becomes noticeable. Here, weights of over 800 kg quickly come together, which then require a lot of force during the movement - even with easy-running rollers. If the shelf is only moved over short distances and not frequently in this way, the problem does not quickly become apparent. If the Compact storage unit is moved frequently over longer distances, this high effort is a problem.

For this reason, we have developed a solution that makes moving the compact storage racks much easier: our compact rack with electric drive! We rely on an established solution on the market of an electrically driven roller set, which we install in our compact storage racks. This makes moving the compact racks very easy and the compact racks can be moved easily and without effort even over longer distances within the company.

Compact pull out rack - electrical

EASY HANDLING
VERSATILE IN USE

The compact rack is controlled by 2 handles, which are mounted on the narrow side of the racks. By turning the handles the electrically driven rollers are controlled.

The electric drive opens up further possibilities for the use of the compact rack. The rack can be loaded directly in the warehouse and the rack is then placed at the assembly workstation fully loaded.

Furthermore the compact rack is available in different versions with 3 to 7 drawers. As load capacities 150 kg / drawer with 100% pull-out depth as well as 200 kg load capacity / drawer with 70 % pull-out depth are available. The electrically moveable compact shelves are all equipped with a safety lock, which ensures that only one drawer can be pulled out at a time. In addition, all electrically movable compact shelves are equipped with a transport safety lock, which locks all drawers during transport.

Compact pull out rack - electrical

STRONG BATTERY
SAFELY STOWED AWAY

The battery pack for the electric drive is well protected under the compact storage unit. To charge the battery, it can be removed from the compartment under the rack and quickly and easily reconnected after the charging cycle. The service life of a fully charged battery depends on the load of the rack and frequency of use, but is usually sufficient for at least one day.
